Getting Started with your new Cisco Phones and your NetOfficePBX System

Getting Started with your new Cisco Phones and your NetOfficePBX System

These Instructions apply to Cisco™ Phones with NetOfficePBX™ Cloud Hosted Phone System and NetOfficePBX™ On-Premises.

Models: SPA303, SPA504G, SPA508G, SPA525G2

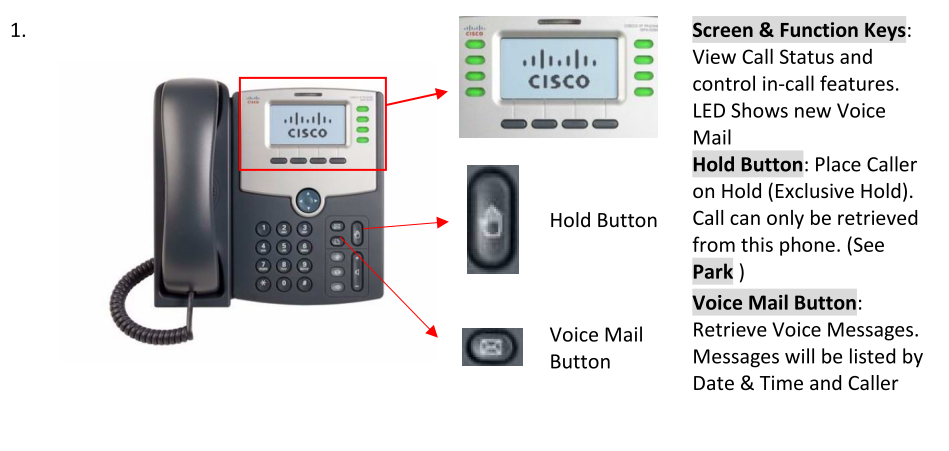

Phone Layout & Hardware Keys

Phone Layout

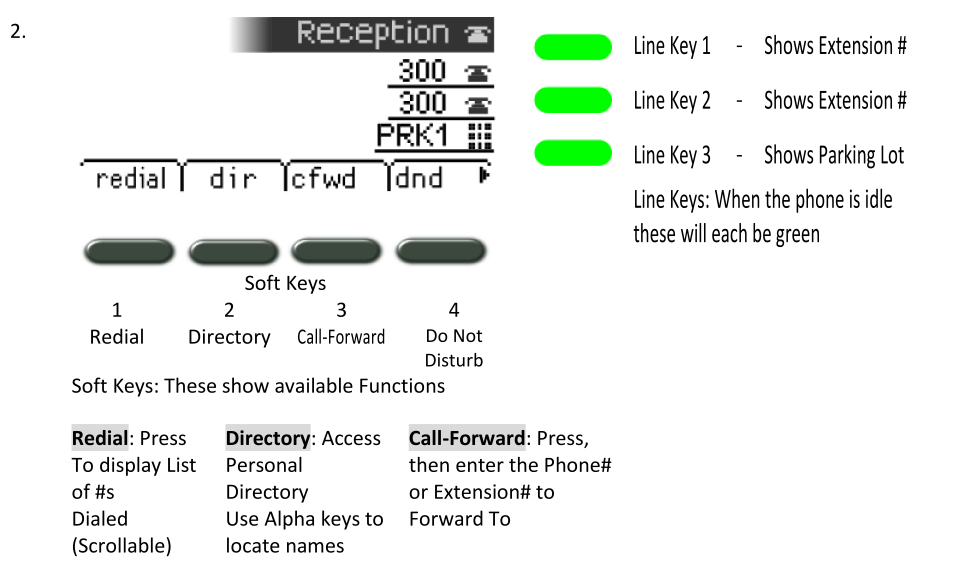

Phone Screen & Function Keys: Idle/No Calls

Idle Screen & Buttons

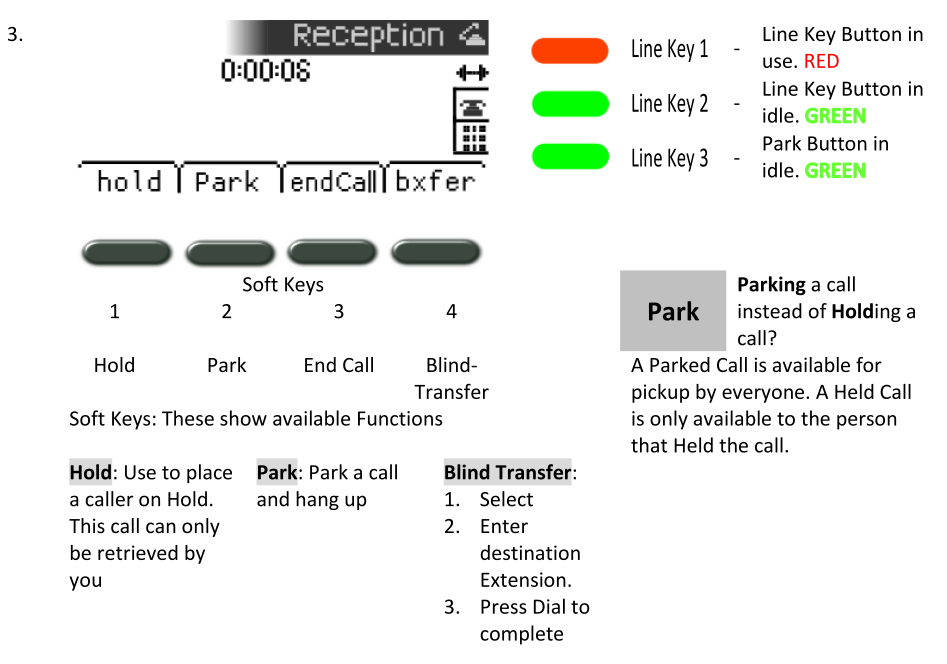

Phone Screen & Function Keys: In-Call

In use

Phone Screen & Function Keys: Idle with Parked Call

Parked Call

Directory



Save Names & Numbers for Speed Dial or Search-By-Name

Press the Settings key;




  1. Option #1 or Press 1
  2. Option #1 or Press 1 again
  3. Fill the available Fields
  4. Save
